Ozone Cell (with Enamel Tube)

OEM service water cooling enamel tube for ozone machine

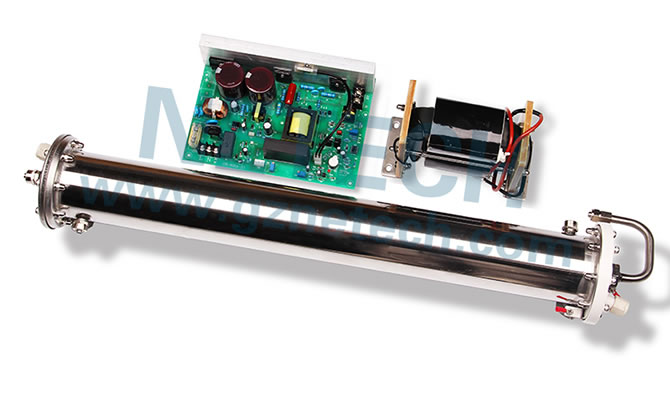

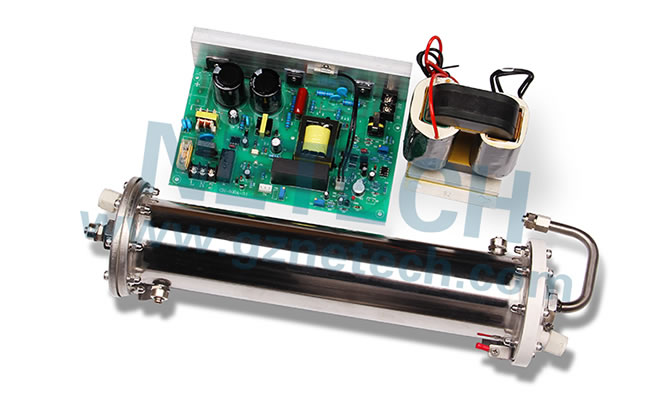

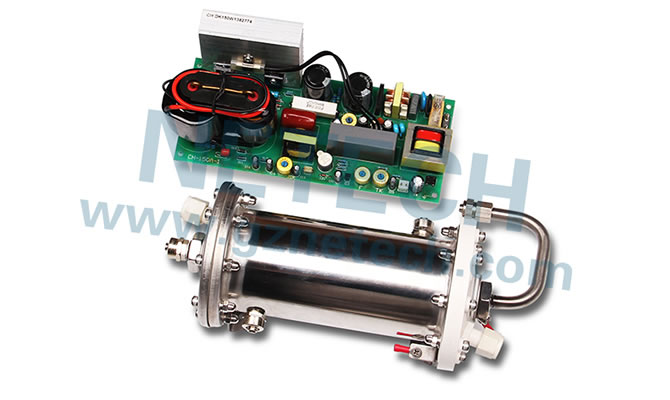

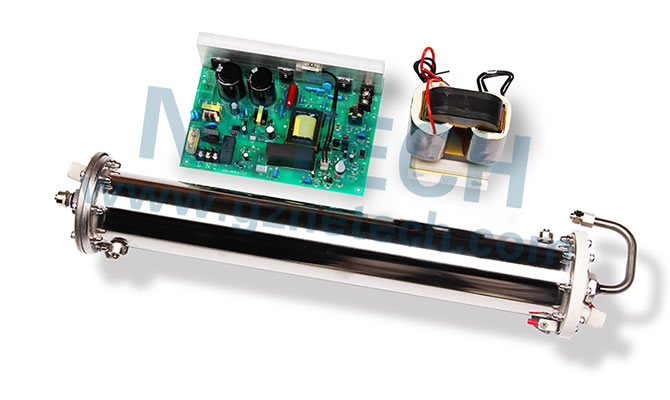

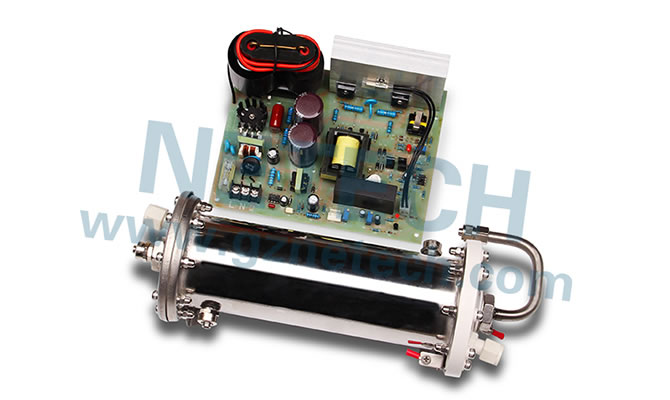

The ozone cell with enamel tube is designed with a 90° angle, stainless steal, and dual water coolers design for a compact ozone generator with a high and stable ozone output. Adjustable The ozone output can be adjusted within 20-100% for more accuracy. We supply enamel ozone generators in 18g, 30g, 40g, 60g, and 80g models.

CH-PC18G
  • CH-PC30G
  • CH-PC40G
  • CH-PC60G
  • CH-PC80G

Ambient temperature: 32°C
Oxygen concentration: >99%
Dew point: >-45
Cooling water output temperature: 35°C

Functions
1. Clean: destroys bacteria and viruses without secondary pollution in the air, on food, and on textiles.
2. Detoxification: removes residual pesticides from vegetables and fruits.
3. Deodorization: eliminates molds, smoke, and odors.
4. Purification: purifies air and water and increases oxygen levels.
5. Health: clean air and drinking water.

Specifications
Item Unit CH-PC18G CH-PC30G CH-PC40G CH-PC60G CH-PC80G
Ambient temperature 23 23 23.9 23.9 24
Ambient humidity % 38 38 37
Oxygen flow rate LPM 1~4 2~8 3~10 5~17 8~20
Ozone concentration Mg/L 112~78 123~72 123~70 120-72 118-74
Ozone output G/Hr 6.7-18.7 14.8~34.6 22.1-42 36-73 56-88
Power Kw ≤0.22 ≤0.3 ≤0.4 ≤0.6 ≤0.8
Cooling method Water cooling for internal & external electrodes
Cooling water flow rate LPM ≥2
Cooling water temperature Ambient temperature ± 8 ℃
Diameter of gas inlet/outlet mm 1. Air inlet & ozone outlet: EDφ8mm
Diameter of water inlet/outlet EDφ10mm
Adjustable range % 20-100
Power supply V/Hz 110/220V 60/50HZ
Fuse A 3 5 10
Ozone tube dimensions mm 285*160*125 340*160*125 460*160*125 600*160*125 705*160*125
Power supply dimensions mm 212*90*95 189*146*95 210*146*62
Ozone tube weight Kg 2.5 3 3.6 4.9 5.45
Power supply weight Kg 1 2.4
