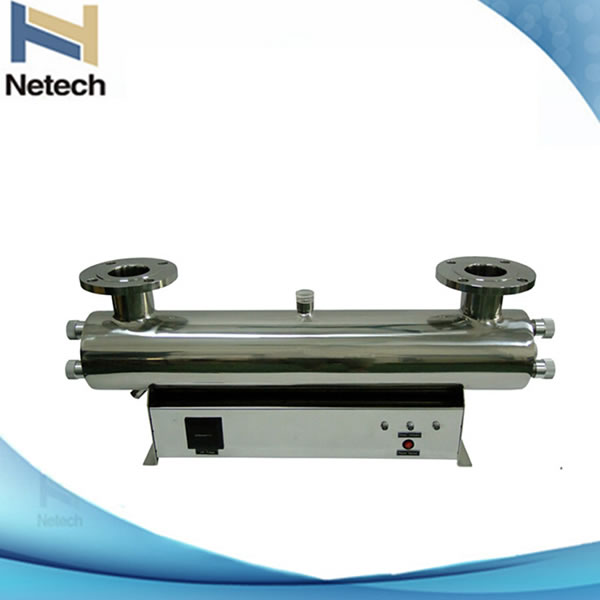

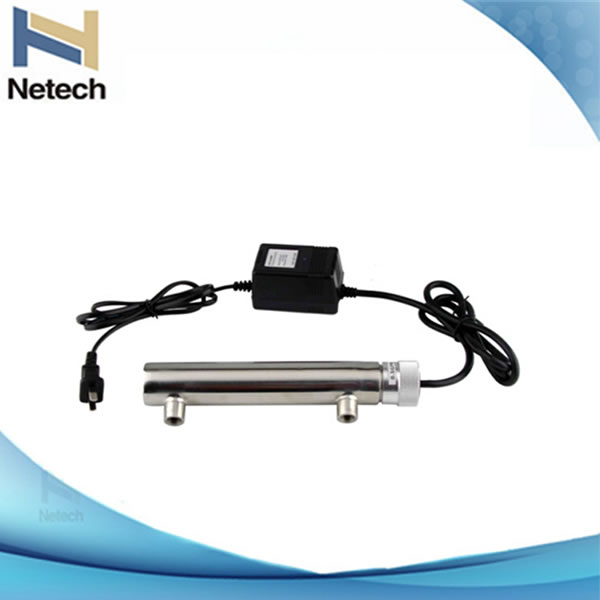

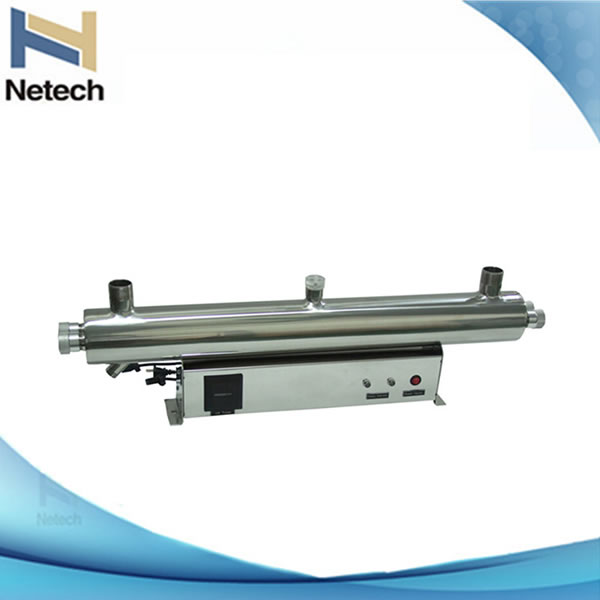

UV Water Clean

High efficiency UV water clean for water treatment system
This UV water clean clean drinking water, waste water, swimming pools and spas, and irrigation water as well as water in cooling towers and RO systems and water used in the electronics industry, effectively improving living and drinking water in public and residential places. This water purifier kills 99.9% of bacteria within 1 to 2 seconds using a broad UV ray spectrum. Meeting industry standards of drinking water, the environmentally-friendly purifier doesn't contribute to pollution as no extra chemicals are added.

Features
1. Excellent water flow rate
0.44-2200GPM (0.1-500ton/hr).
2. Long warranty
10 year warranty for stainless steel casing, electrical components have a 1 year warranty.
3. Quality material
SS304 or SS316L stainless steel for reaction chamber. All connections are smooth without corners.
4. UV intensive chamber
Internal and external polishing mirror chamber is effectively clean.
5. Withstands pressure
The chamber has been tested in both air and water pressures,withstanding 0.8 Mpa, and fully prevents water from leaking.
6. Mercury lamp
This imported high-strength mercury lamp with a lamp tube from Hanovia has a service life of 9000-13000 hrs and efficient electron ballasts to provide a clean rate up to 99.99%.
7. Meets industry standards
This microbial water treatment equipment purifies water to meet living and drinking water standards of CJ/T204-2000.

Packing
Our sturdy carton packaging is padded with foam and double layers to protect products from damage during shipment.

Specifications
Model Water flow (T/Hr) Power (W) Size (mm) Water input & ouput size Max. pressure (Mpa)
CH-UV005G 0.1 8 250×48×65 1/4″ 0.8
CH-UV01G 0.2 10 295×60×80 1/4″
CH-UV02G 0.5 14 370×60×80 1/2″
CH-UV04G 1 17 450×73×110 1/2″
CH-UV06G 1.3 23 520×73×110 3/4″
CH-UV08G 1.8 28 650×73×110 3/4″
CH-UV12G 2.7 40 950×73×110 1″
CH-UV3T 3 40×1 950×125×250 1″
CH-UV5T 5 40×2 950×138×280 1.2″
CH-UV8T 8 40×3 950×170×310 1.5″
CH-UV12T 12 40×4 950×195×335 2″
CH-UV15T 15 40×5 950×195×335 2″
CH-UV20T 20 80×3 950×205×405 2.5″
CH-UV25T 25 80×4 950×275×465 2.5″
CH-UV30T 30 120×3 1250×275×545 3″
CH-UV40T 40 120×4 1250×275×550 3″
CH-UV50T 50 120×5 1250×275×550 4″
CH-UV60T 60 150×5 1650×280×495 4″
CH-UV70T 70 150×6 1650×305×520 5″
CH-UV80T 80 150×7 1650×305×520 5″
CH-UV100T 100 150×8 1650×335×550 6″
CH-UV125T 125 150×10 1650×360×575 6″
CH-UV150T 150 150×12 1650×385×600 8″
CH-UV200T 200 150×16 1650×460×675 8″
CH-UV500T 500 240×25 1650×650×750 DN300
