Venturi Injector and Mixing Pump

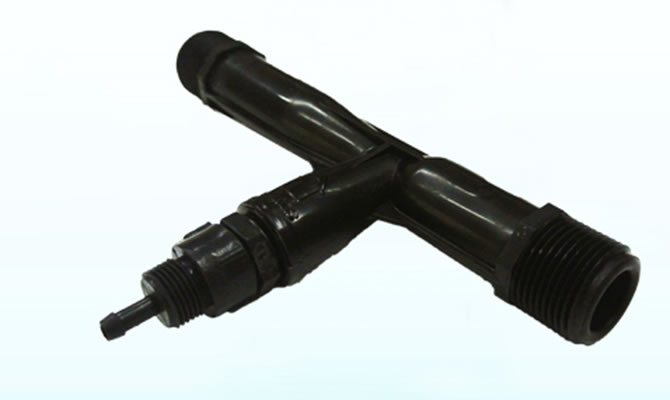

Venturi Injector

The Venturi Injector is used with an ozone generator for water treatment. It is made of anti-ozone PVDF material and is connected to your existing filtration system where it injects ozone into a vacuum to mix into the water flow.

Ozone mixing device mixing pump and venturi for water treatment

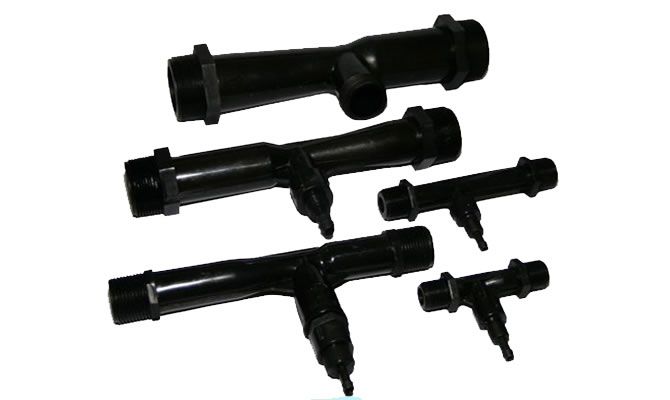

Venturi tube for water treatment
Specifications
Venturi
Marks Model Quantity (PC) Size (mm)
1 A12057 1 57
2 A25100 1 100
3 A32235 1 235
4 A25152 1 152
5 A48275 1 275
6 A58295 1 295
Specifications
Model: A12057
Material: PVD
Water flow rate: 0.05-0.25 T/Hr
Specifications: 1. Inlet and outlet diameter 1/5" external screw thread 2. Valve bonnet of gas inlet is 1/8" 3. Flexible hose is 1/4" 4. Length: 57 mm

Model : A25100
Material: PVDF
Water flow rate: 0.1-1 T/Hr
Specifications: 1. Inlet and outlet diameter 1/2" external screw thread 2. Valve bonnet of gas inlet is 1/4" 3. Flexible hose is 1/4" 4. Length: 100 mm

Model: A32235
Material: PVDF
Water flow rate: 3-10 T/Hr
Specifications: 1. Inlet and outlet diameter 1" external screw thread. 2. Valve bonnet of gas inlet is 1/2" 3. Flexible hose is 3/8" 4. Length: 230 mm
Model : A25152
Material: PVDF
Water flow rate: 1-3 T/Hr
Specifications: 1. Inlet and outlet diameter 3/4 " external screw thread 2. Valve bonnet of gas inlet is 1/4" 3. Flexible hose is 1/4" 4. Length: 152 mm
Model: A48275
Material: PVDF
Water flow rate: 10-25 T/Hr
Specifications: 1. Inlet and outlet diameter 1.5" screw thread 2. Valve bonnet of gas inlet is 1/2" 3. Flexible hose is 1/2" 4. Length: 275mm
Model : A58295
Material: PVDF
Water flow rate: 25-50T/Hr
Specifications: 1. Inlet and outlet diameter 2" screw thread 2. Valve bonnet of gas inlet is 1.25" 3. flexible hose is 1/2" 4. Length: 295mm

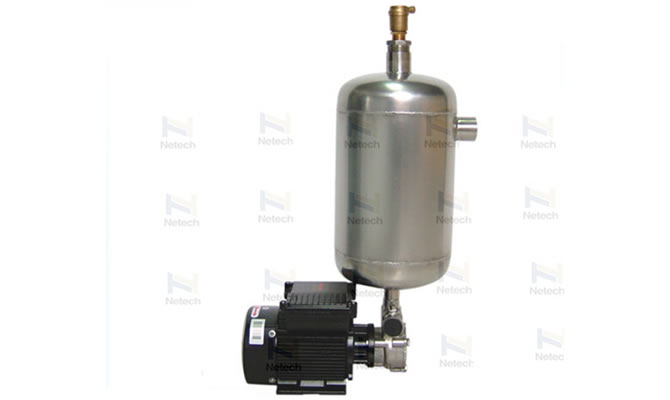

Mixing pump

The mixing pump brings in ozone to mix with water and has an ozone dissolution ratio of 80-100%, depending on water temperature, gas concentration, and pH concentration. This NT system does not use a compressor, pressure dissolve tank, ejector or static mixer, making it small and compact. With conventional centrifugal pumps, this pump sucks in liquid and air, mixing and transporting them. Diameter for micro bubbles: 20-30µ

Working conditions:
pH: 3-9
Highest environment temperature: 400C
Liquid temperature:-150C--1200C

Specifications
Item 20NT-1SS 20NT-1DS 25NT-2SS 25NT-2DS 40NT-6SS 50NT-12
Head of delivery 40M 50M
Flow rate 1T/Hr 2T/Hr 6T/Hr 12T/Hr
Water input size 0.75" 1" 1.5" 2"
Water output size 0.5" 0.75" 1.2" 1.5"
Power 0.55Kw 1.1Kw 3Kw 5.5Kw
Voltage 380V 220V 380V 220V 380V 380V
Speed 2900r/min
Size of tank Φ 200 × 320mm (3mm thickness) Φ 273 × 720mm (3mm thickness)
