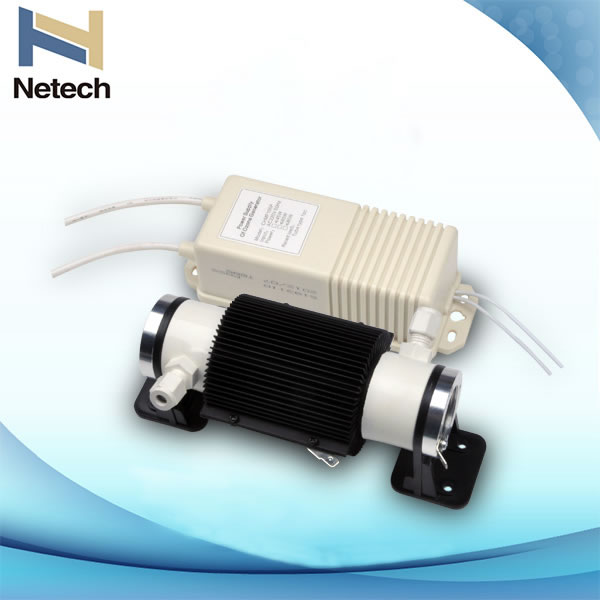

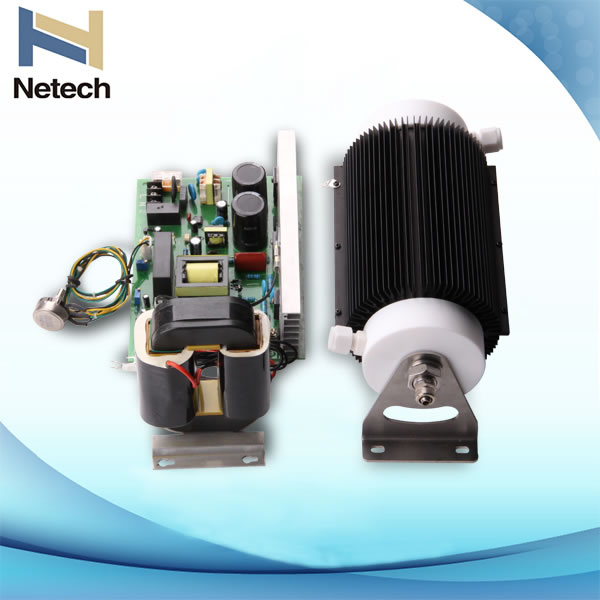

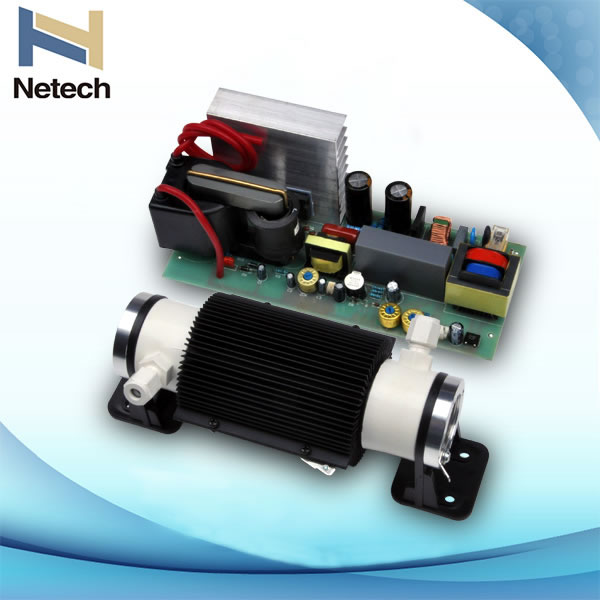

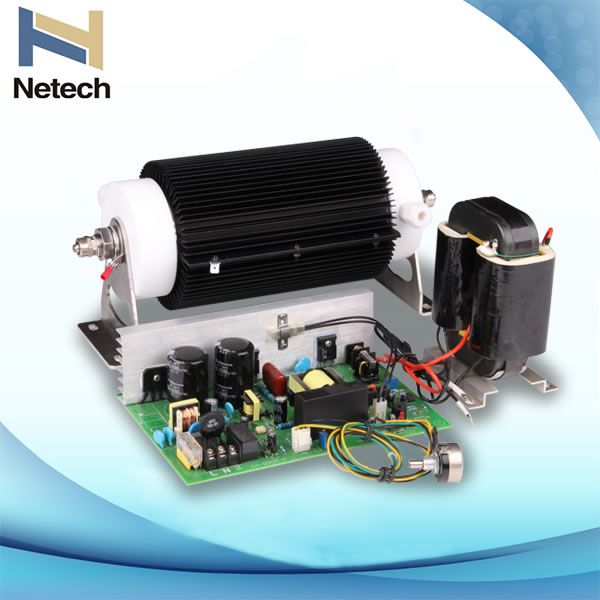

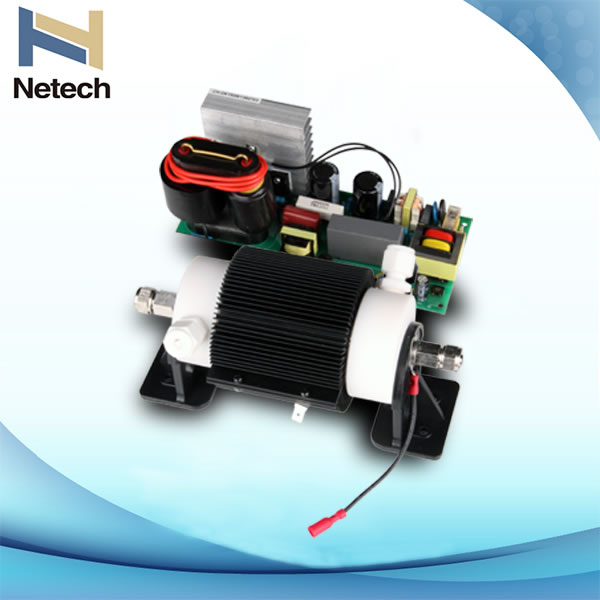

Ozone Cell (with Ceramic Tube)

OEM 1g to 50g ozone generator parts ozone ceramic tube for water treatment

Air cooling ceramic ozone tube

The ozone cell with ceramic tube uses imported ceramic, SS 316L internal electrodes, and anti-oxidant Teflon connections to ensure a long service life.

Inquiry Form

Features
1. Extremely low rate of ozone decay and high ozone concentration: Ozone concentration can be around 30-86 Mg/L.
2. In 2008: This ozone cell is air cooled for internal and external electrodes with a low temperature rise during continuous operation.
3. Low working voltage: The working voltage is 10% of similar products producing a stable capacity with low ozone dissipation.
4. Small and compact: The ceramic ozone generator effectively saves space as it is 1/4 the size of similar products.
5. Ozone output is adjustable: 20%-100%.
6. There are two timer options: The ceramic air purifier can work for anywhere between 5-30 minutes or continuously.
7. CE approved

Functions
1. Clean: destroys bacteria and viruses without secondary pollution in the air, on food, and on textiles.
2. Detoxification: removes residual pesticides from vegetables and fruits.
3. Deodorization: eliminates molds, smoke, and odors.
4. Purification: purifies air and water and increases oxygen levels.
5. Health: clean air and drinking water.

CH-PTF1G 3G
Item Unit CH-PTF
1G (12V) 1G (220V) 1G (110V) 3GM 3GA
Ambient temperature ℃ 21.6 25 23.6 21
Ambient humidity % 40 50 21.6 40
Power W ≤14.4 ≤15 ≤15 ≤50 ≤80
Oxygen feed flow rate LPM 0.3~0.5 0.3~1 0.3~1 0.5-1
Ozone concentration Mg/L 49~40 49~30 49~30 81.6-49.2
Ozone output G/Hr 0.88~1.2 0.88~1.8 2.4-2.95
Ozone output adjustable range % / / 20~100
Line power supply V/Hz 110/60 220/50
Cooling method / Air cooling
Diameter of cooling fan mm 50*50 50*50 50*50 120
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 105*57*50 96*47*32 96*47*32 153×60×53 201×86×83
Ozone tube dimensions mm 125*50*50 165×90*90
Ozone tube weight Kg 0.2 0.5
Power supply weight Kg 0.15 0.59 0.76
CH-PTF5G 7G
Item Unit CH-PTF
5GM 5GA 6GM 6GA 7GA
Ambient temperature ℃ 21 21 26 26
Ambient humidity % 40 49 49
Power W ≤65 ≤80 ≤80 ≤85 ≤95
Oxygen feed flow rate LPM 0.5-2 1~3 1~3
Ozone concentration Mg/L 72~48 64.6~36.7 70~41.2
Ozone output G/Hr 2.16~4.76 3.9~6.6 4.20~7.4
Ozone output adjustable range % / 20~100 / 20~100 20~100
Line power supply V/Hz 110/60 220/50
Cooling method / Air cooling
Diameter of cooling fan mm 150
Diameter of gas inlet/outlet mm EDФ6
Power supply dimensions mm 177*66*53 201*86*83 177*66*53 201*86*83 201*86*83
Ozone tube dimensions mm 185*90*90 200*90*90 212*90*90
Ozone tube weight Kg 0.53 0.56 0.65
Power supply weight Kg 0.59 0.76 0.59 0.76 1.1
Air and water cooling ceramic ozone tube
Inquiry Form

Imported ceramic, SS 316L internal electrodes, and anti-oxidant Teflon connections ensure a long service life.

CH-PT 7-50G/Hr
Item Unit CH-PT
7GM 7GA 15GA 30GA 50GA
Ambient temperature ℃ 28 21.9 22 26
Ambient humidity % 37 39 38 44
Oxygen feed flow rate LPM 1~3 3~5 7~9 15~18
Ozone concentration Mg/L 70-40 66.4~53 62~53 52~49
Ozone output G/Hr 4.2~7.2 11.9~15.9 26~28.6 46.8~52.9
Power (220V) W ≤100 ≤100 ≤190 ≤300 ≤500
Current ±10% A 0.45 0.86 1.4 1.9
Cooling method Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rate LPM >2
Diameter of cooling water pipe mm EDФ10
Temperature of cooling water ℃ Ambient temperature ±8 ℃
Diameter of cooling fan mm 1pcs Dia.150 fan 2pcs Dia.150 fan
Diameter of gas inlet/outlet mm EDФ6 EDФ8 EDФ8
Ozone output adjustable range % / 20-100 20-100
Line power supply V/Hz 110/60 220/50
Ozone tube dimensions mm 200×100×105 260×100×105 340×160×125 325×135×150
Power supply dimensions mm 177×66×53 201×86×83 212×90×95 189×146×95 210×146×62
Weight of power supply KG 1.27 1.0 2.45 2.35
Weight of ozone tube KG 0.91 1.35 1.9 4.3
