Drum Filter

Drum Filter for Fish Farm

20T/hr to 200T/hr drum filter for fish farm water treatment system
Description

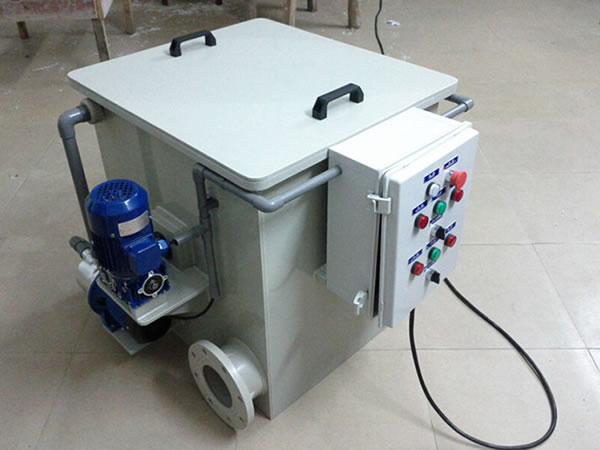

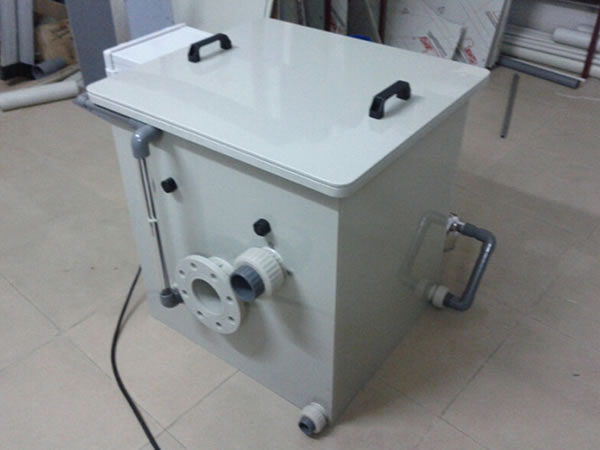

The drum filter for fish farms is made of the housing, rollers, back washing system, and electric control system. With a capacity of 20-100M3/H (or higher), the fish farm filter uses non-toxic, corrosion-resistant plastic and 200 (80 microns) stainless steel mesh to separate and remove suspended solids. This water treatment filter is also used to treat water from sewage systems, paper, textile, printing, and chemical industries.

Features
1. High quality plastic and SS316L mesh that is corrosion-resistant.
2. SS316L mesh with small aperture for low resistance.
3. Automatic back washing function ensures proper use.
4. Low power consumption, energy-efficient, easy operation and maintenance.

Specifications
Model Voltage Power Water flow (T/Hr) Water Input/Output Size
V Kw 75μm 38μm mm cm
CH-PM-20 380 0.55 20 10 Φ90Φ110 100×95×85
CH-PM-30 0.55 30 15 Φ90Φ110 115×95×85
CH-PM-40 0.55 40 20 Φ110Φ140 115×105×95
CH-PM-60 0.62 60 30 Φ140Φ160 140×105×95
CH-PM-80 0.62 80 40 Φ160Φ160 150×125×115
CH-PM-100 0.74 100 50 Φ160Φ200 170×125×125
CH-PM-150 1.1 150 75 Φ200Φ250 180×155×150
CH-PM-200 1.1 200 100 Φ250Φ250 195×165×165

The drum filter can be customized.
