Oxygen Concentrator

The oxygen machine( Main for aquaculture): Used for increasing the oxygen at the bottom of fish pond. The water outlet ( the water inlet of the fish pond) has been treated by the oxygen machine, the oxygen concentration in the water will reach to 20ppm(20mg/L) and finally form into the hyperoxic water. Mix the hyperoxic water into the pond water which could satisfy the oxygen demand of various growth stages in aquaculture. Especially suitable for high density of breeding

1. Imported molecular sieve
2. Special aluminum material for the absorption tower
3. Efficient radiator
4. Fans
5. Air-operated control valve
6. Moist cup with metal nut and metal connector
7. Air compressor

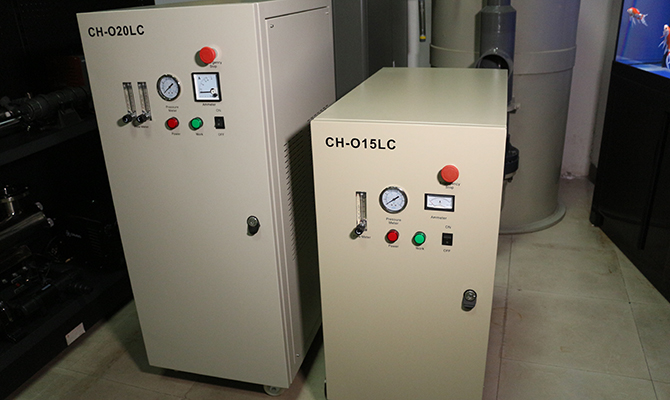

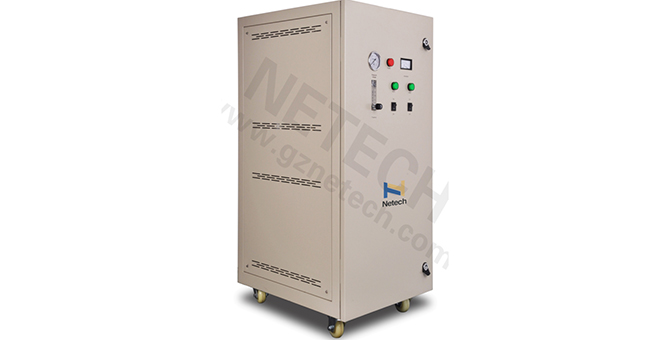

High concentration 10-20LPM commercial use oxygen concentrator for fish farm

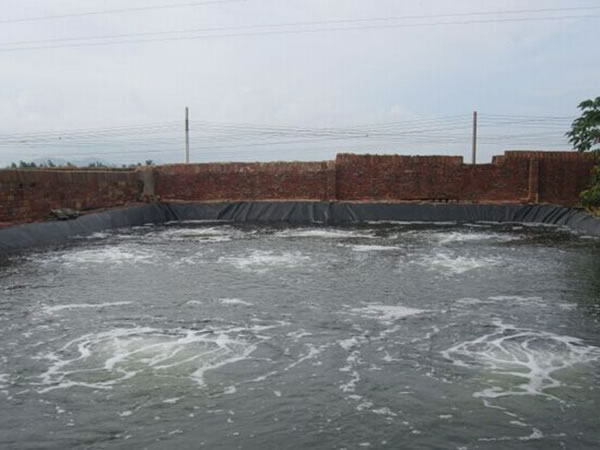

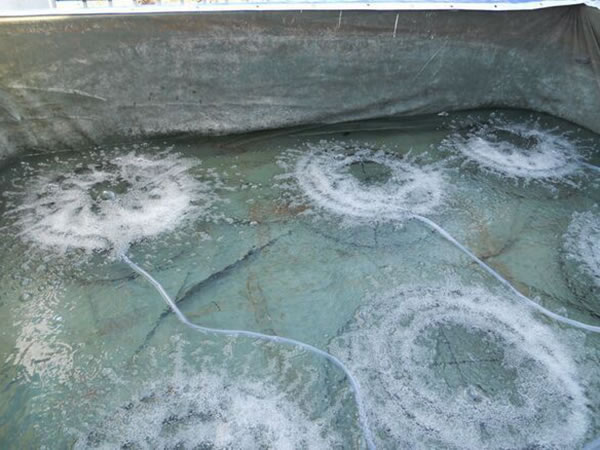

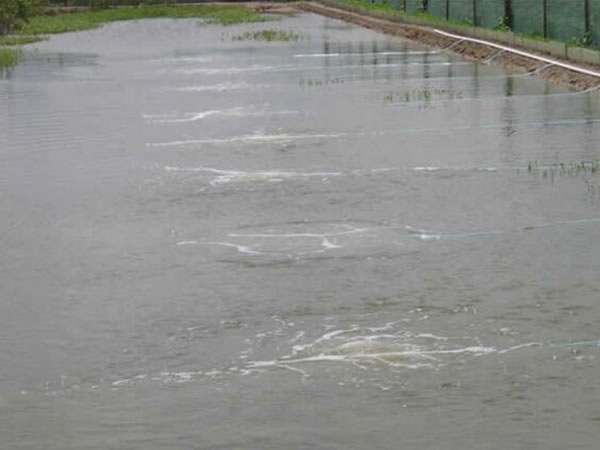

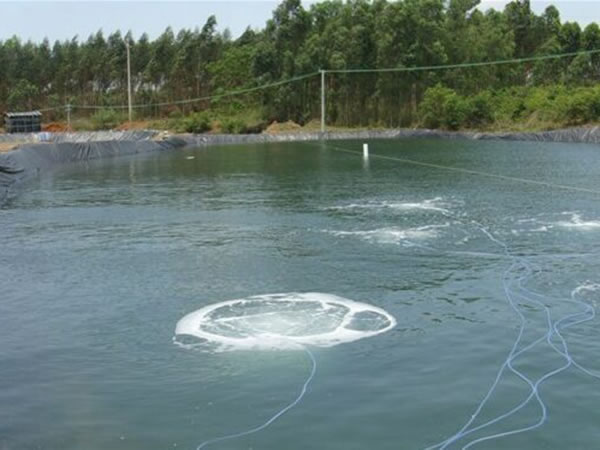

Aquaculture system: increasing oxygen water treatment in fish pond.

Product details

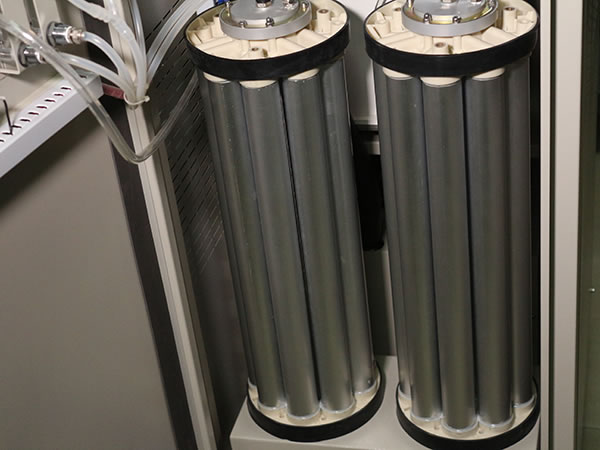

High strength carbon steel shell configured with 12 or 2 towers of PSA molecular sieves, providing between 10L-40L/min.

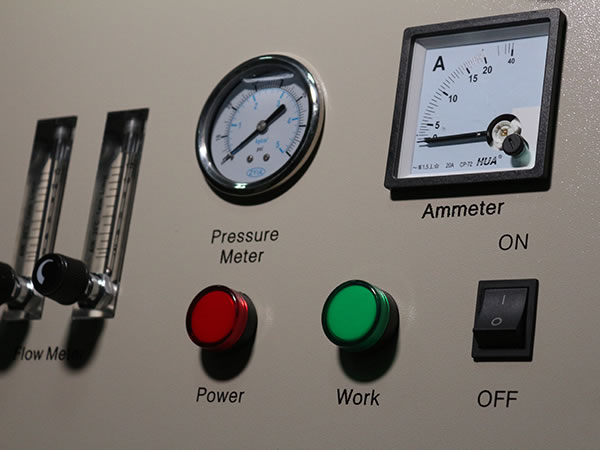

  • User-friendly control panel, increase ORP to display pH value of water.

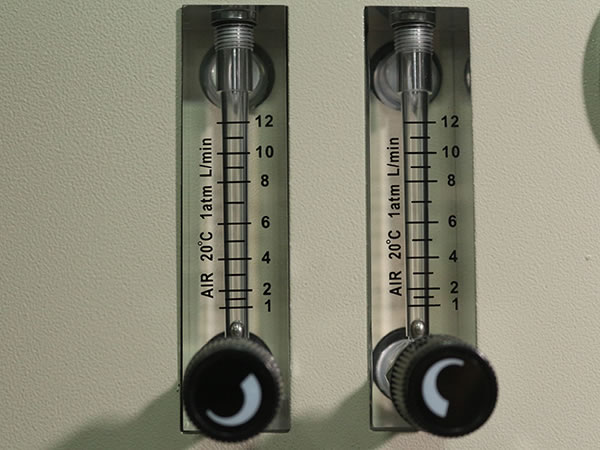

  • Oxygen flow meter
  • Twelve Towers Oxygen Concentrator

Quality & Guarantee
Service life >15 thousand hours
Warranty 12 months (continuous 24 hour operation)
If oxygen concentration is lower than 87% during the one year warranty, we will replace the molecular sieve free of charge.

Oxygen output LPM 3 5 7.5 10 15
Oxygen concentration % 90%±3% 90%±3% 90%±3% 90%±3% 90%±3%
Air flow rate LPM 36-45 60-75 90-115 90-115 180-200
Pressure(inlet) Mpa 0.14-0.18 0.14-0.2 0.15-0.21 0.18-0.25 0.35
Pressure(outlet) Mpa 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08 0.06-0.08
Temperature indoor temperature
Relative humidity % ≤ 70%±10%
Noise Db ≤60 ≤60 ≤60 ≤60 ≤60
Dimension mm Ф200×310 Ф200×430 Ф200×500 Ф200×560 Ф200×880
Net weight kg 15.7 18.3 19.3 30.6 32.5

Note: The oxygen output can customize according the customer requirement.
