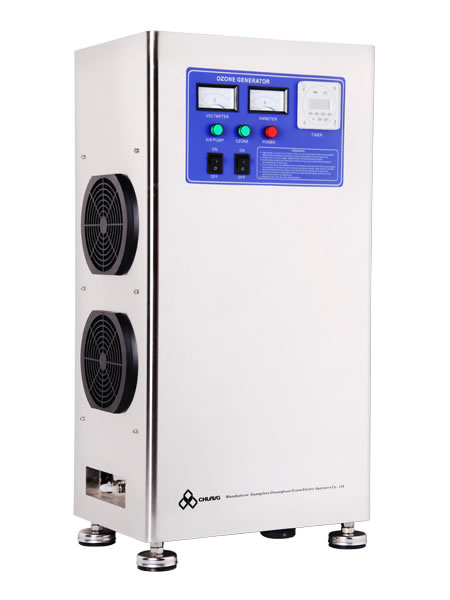

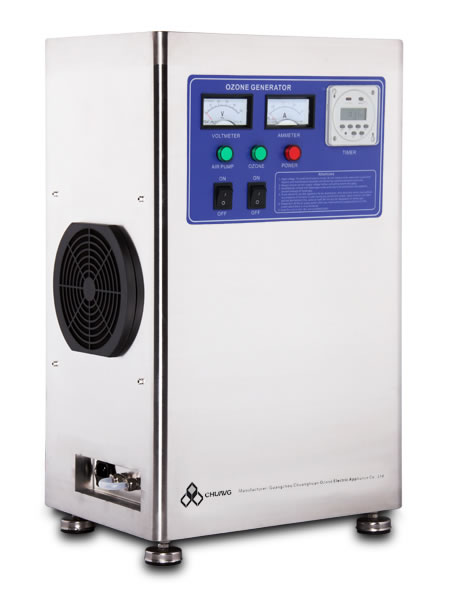

Air Cooled Ozone Generator
The air cooled ozone equipment is used in hospital patient rooms and operating rooms, in laboratories, in food production and aquaculture, in hotels and offices, and in drinking water treatments to clean and purify water.
Features:
1. Automatic air dryer or outside oxygen source.
2. Connects with external ozone injector for water treatment.
3. Mobile on wheels or wall-mounted.
4. Protection against breakdowns, easy to operate and maintain.

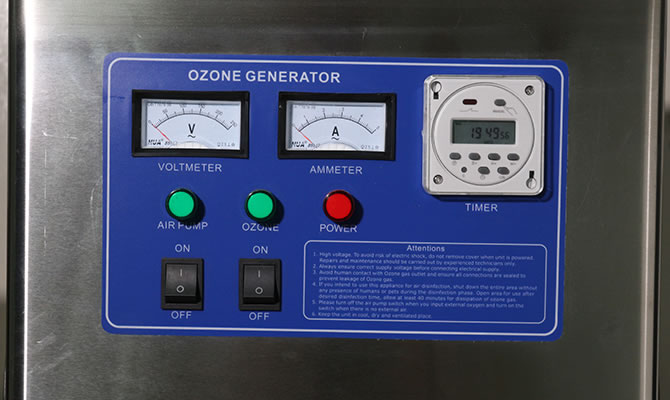

Control panel:
Voltmeter, ampmeter, switch, timer, working light, power light etc.
Timer: One or two cycles of operation.
SUS304 stainless steel housing or high-strength carbon steel sprayed with plastic housing. Adjustable ozone output.-
Control and display system
-
The cooling fan is built-in dust sponge for preventing dust.
-

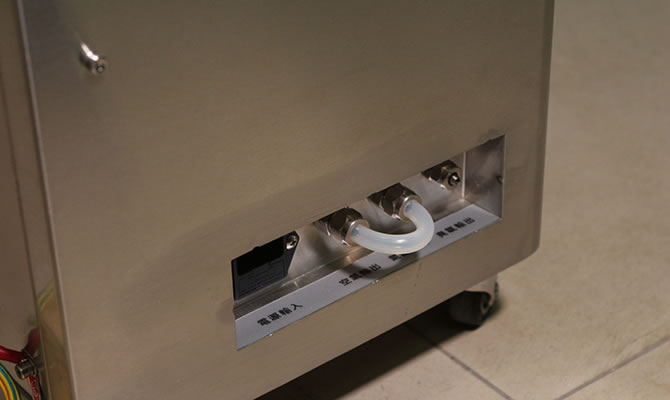

Power supply, air input and ozone output.
-

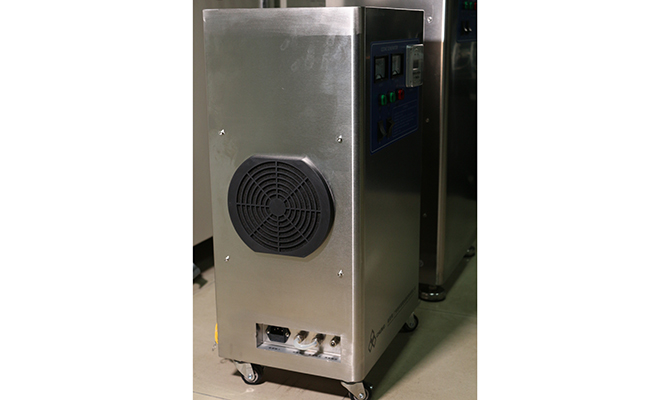

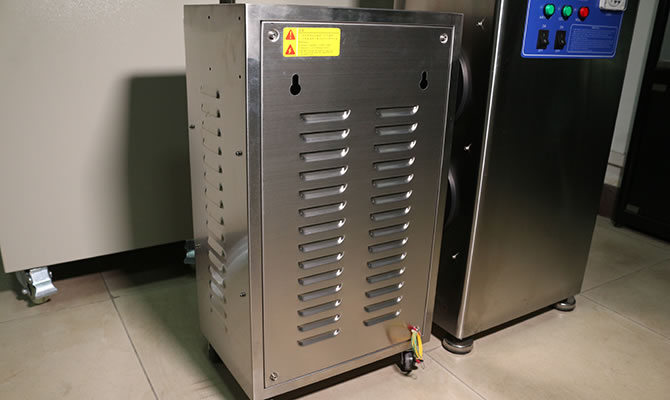

The back and sides of the cabinet use unique design for heat dissipation, effectively lower the internal temperature during working.
| Item | Unit | CH-T-N | ||||||
| 2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
| Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
| Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
| Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
| Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
| Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
| Compressed air pressure | Mpa | 0.025 | ||||||
| Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
| Size | cm | 36 ×26 ×61 | 40 ×30 ×77 | |||||
| Net weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 |
|

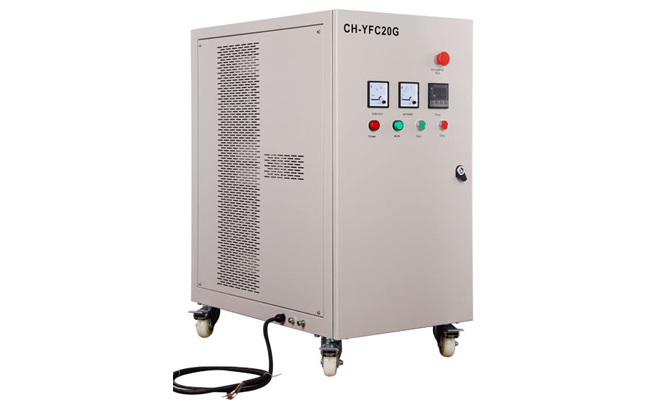

The air cooled ozone generator is made of high-strength carbon steel and plastic casing. An air cooled system keeps the generator operating in good conditions. With an output of 30g/hr, the air cooling ozone machine is used in hospital patient rooms and operating rooms, in laboratories, in food production and aquaculture, in green houses, swimming pools, and in drinking water treatments to clean and purify water.
Features:
1. Carbon steel sprayed with plastic housing
2. PSA high purity twelve tower oxygen sieve
3. Air cooling ceramic ozone tube with high frequency electric board, and high ozone concentration
4. Oil-free air compressor
5. Air dryer and filters supply a cool, dry, clean air source for air compressor and PSA oxygen concentrator
6. Manual control, long service life, mobile on wheels, easy to operate and maintain
Control panel:
Voltmeter, amp meter, timer, ozone amp meter, main switch, power supply switch, emergency stop, working light, power light, alarm
Control protection:
Over current protection
Electric leakage protection
Short circuit protection
Overheating of air compressor protection
Time delay system protection
| Item | Unit | |
|
|
|
|
| Oxygen flow rate | LPM | 3 | 3.5 | 5 | 8 | 10 |
| Ozone concentration | Mg/L | 48.5~52.3 | 48.5~52.3 | 49.5~51.2 | 38.9~41.7 | 53.2~56.1 |
| Ozone output | G/Hr | 5 | 10~11 | 14.8~15.4 | 18.6~20 | 32~34 |
| Power | KW | ≤0.48 | ≤0.81 | ≤0.924 | ≤1.00 | ≤1.23 |
| Current | A | 2.2 | 3.6 | 4.2 | 4.5~4.7 | 5.6 ±5% |
| Voltage | V | 220V/50HZ | ||||
| NW | KG | 64 | 86 | 89 | 92 | 97 |
| Size | cm | 45x50x84 | 50 ×66 ×95 | 45*93*118 |
||
