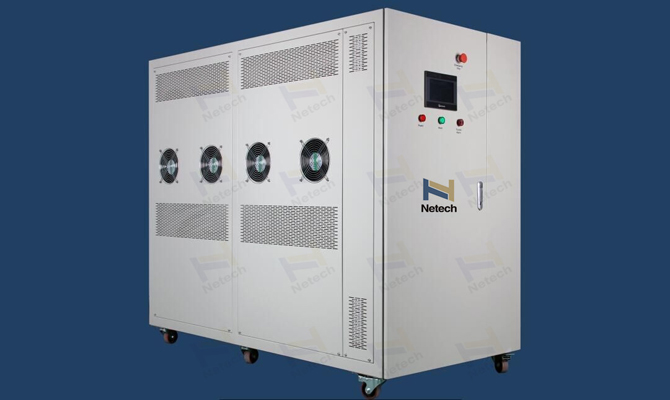

Intelligent Ozone Generator

OSUNSHINE PLC intelligent controlling ozone generator features an exclusive intelligent power system. Accurate quantitative ozone output makes all kinds of processes economic and practical, whether that is food processing, waste water treatment, clean, or chemical processing. The ozone generator is available with an automatic alarm system and over 20 protection functions, which ensures all-around protection during operation. Additionally, it supports effectively prevention of misoperation so as to avoid potential damages.

Inquiry Form

Simple operation and get the ozone needed at any time.

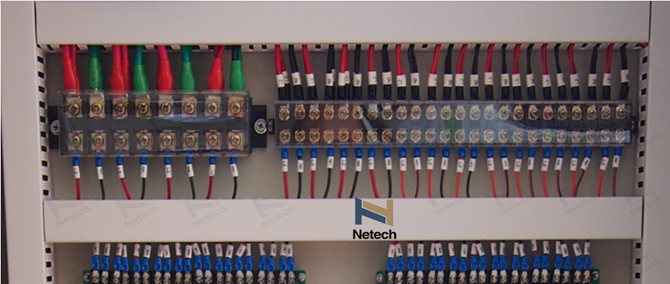

Delicate manual work and seek perfection in every detail.

CH-WZQ-PLC —Vertical ozone generator (outside source)
Parameter
Item Oxygen flow rate Ozone output Power Cooling method Cooling water flow rate Voltage Size Net weight
Model L/min g/h w / L/min V Hz mm kg
CH-WZQ10G 3 10 200 Water cooling 6-10 220 50/60 450×360×840 28
CH-WZQ20G 5 20 310 30
CH-WZQ30G 10 30 400 33
CH-WZQ40G 10 40 460 35
CH-WZQ50G 15 50 530 35
CH-WZQ60G 20 60 700 450×360×960 39
CH-WZQ-PLC—Water Cooling Complete Ozone Generator
Parameter
Item Oxygen flow rate Ozone output Power Cooling method Cooling method Cooling water inlet Cooling water outlet Refrigerated air Dryers outlet Voltage Size Net weight
Model L/min g/h w / L/min mm mm mm V Hz mm kg
CH-Y10G 3 10 880 Water cooling 6-10 ￠ 20 ￠ 8 ￠ 10 220 50/60 550×800×1100 91
CH-Y20G 5 20 1300 94
CH-Y30G 10 30 1500 98
CH-Y40G 10 40 1600 102
CH-Y50G 15 50 2600 650×1030×1240 172
CH-Y60G 20 60 2800 180
CH-Y100G 30 100 5280 670×1090×1250 200
CH-Y200G 60 200 10000 15-20 ￠ 32 ￠ 20 ￠ 20 900×1750×1520 530
